Pictures Building the Cart





Left: Going over the blueprints.   Right: Drafters at work.



Left: Getting the hubs ready.  Right: Making the hub.



Left and Right:  Gluing the axle.

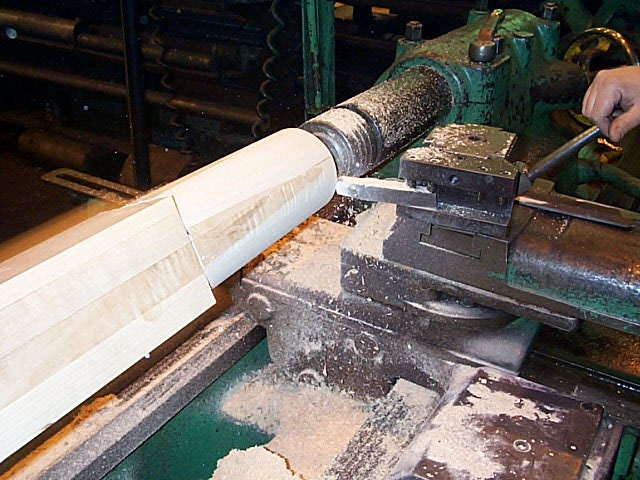

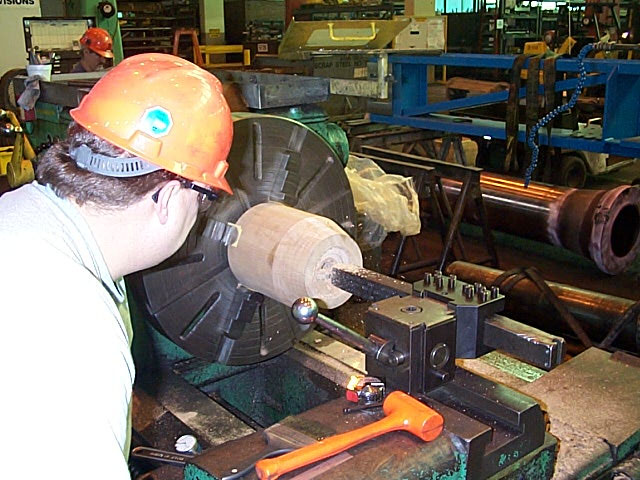

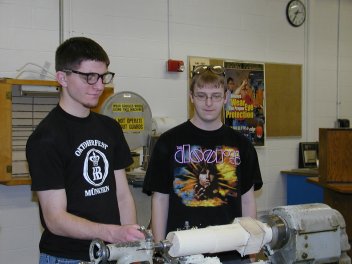

Left: Brian Kline of Alcoa sets up lathe for the hubs.  Right: Lathing the axle.



Left: Gluing the shafts.     Right: Planing the shaft.



Left and Right:  Press conference announces the project.



Left:  Making the spoke.  Right:  Sanding the spoke.



Left:  Cutting the felloe.  Right:  Drilling the felloe.



Left:  Filing the shaft mortise joint.  Right:  Making the wheel hub jig.
